Through deep learning, robotic systems in the agricultural sector are getting better at recognizing and processing photos of crops. To properly train the systems, hundreds to thousands of images are needed of the crop for which they are used. These images are largely processed by humans. First, they find out which photos are relevant and then they have to annotate them: draw in pixels and label them. Based on this information, a system learns to recognize patterns that they will encounter in the greenhouse.
Selecting and annotating images by experts is an expensive, labor-intensive job that can involve human error. Pieter Blok, Ph.D. student at Wageningen University & Research, went in search of a method that could simplify the selection and annotation of images. He designed an algorithm that uses active learning, a smart sampling technique. The algorithm is able to select the most interesting images from a dataset itself. Those are the images the system has trouble with, and can therefore learn the most from.
Trial with broccoli

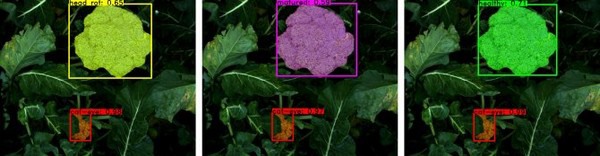

To test his algorithm, Blok set to work with photos of broccoli plants in the field. The image below demonstrates how. Three different attempts by the system to process the broccoli produced three different outputs on the same image: sick (left), overripe (center), and healthy (right). So the uncertainty factor was very large, and the algorithm concluded that this was an interesting image for humans to label. The tagged image was then fed back to the system so that it learns from it. Blok: 'If the algorithm is uncertain about something, there is probably a lot of room there to improve its performance.'
By leaving only the 'uncertain' images to humans, Blok's method saved a lot of time. With random sampling, people would have had to label 2,300 images, but because of his smart sampling, that number was reduced to only 900 images. So a saving of 1,400 images. Blok does a quick calculation: 'Annotating one image takes about 3 to 5 minutes. If you save 1,400 images, like in my dataset, you're talking about a time saving of maybe 7,000 minutes in total. That is over 116 hours.”
Freely accessible
According to Blok, all companies in the agricultural sector are confronted with the fact that annotating images takes a lot of time. He therefore hopes that his innovative method will be widely used. His software, which has been given the name MaskAL, is free to download.
For more information:
Wageningen University & Research
www.wur.nl
